Umbrella Coverage Specs: Arc, Open Diameter, and Rib Length

When buyers compare umbrella coverage specs, the numbers on a catalog sheet often hide the real question: how much rain protection does the user actually get? On the factory floor, arc, open diameter, and rib length each describe a different part of the canopy geometry, and small spec differences can change performance across promo, retail, and golf models. To choose correctly, you need to translate those measurements into actual coverage, not just a larger-looking label.

Start with arc, not just canopy diameter

Arc length is the number buyers quote most often, but it is not the same as open diameter or rib length, and treating them as interchangeable causes bad specs. In umbrella coverage specs, arc means the curved edge measured along the canopy path; open diameter is the straight-line span across the umbrella when it is fully opened; rib length is the metal or fiberglass arm from center hub to tip. A 48-inch arc can still open to a different diameter depending on the frame geometry, hub height, and how much the canopy is stretched. For promo umbrella sizing, the wrong assumption usually happens when a buyer sees one number on a catalog page and assumes it describes the full coverage footprint. It does not. If you need a real comparison, ask for all three numbers on the same sample and measure them with the umbrella fully locked open, not half-open on the table.

Crown depth changes the way coverage looks and performs even when the open diameter is identical. A deep crown pulls the canopy downward, which can make a 42-inch open diameter umbrella feel smaller at shoulder height than a flatter canopy with the same span. Panel cut matters too: a tighter, more rounded panel layout can add visual fullness, while a flatter cut reduces billowing and can expose more of the frame during wind. That is why the same umbrella coverage specs can look different across vendors even if both claim the same canopy size. With a 21-inch, 23-inch, or 27-inch frame, rib length is only one part of the story; ferrule shape, venting, and seam tension also affect perceived coverage. If you are comparing products for retail or event use, require the actual open diameter plus a side photo with a tape measure, otherwise you are comparing brochure language, not geometry.

The practical rule is simple: rib length tells you the frame class, open diameter tells you real coverage, and arc length tells you how much fabric runs around the edge. A 23-inch rib length often lands in the 40 to 48-inch arc range depending on the build, but that still does not tell you whether the umbrella will cover one person, two people, or a backpack. For procurement, I treat umbrella coverage specs as a three-number check, then confirm canopy size with the panel layout and crown depth. On straight umbrella models, the difference between a shallow and deep crown can be 1 to 2 inches of apparent coverage at the edge, which matters in promo umbrella sizing when the buyer is trying to fit a print area and a usage target at the same time. If the factory only gives one dimension, you do not have a complete spec.

Translate use case into target coverage

The cleanest way to read umbrella coverage specs is to start with the finished open diameter, then back into rib length and canopy size. For compact and giveaway programs, a 21-23 inch frame usually lands in the 36-40 inch open diameter range, which is enough for one person and keeps cost, weight, and carton count under control. For most promo umbrella sizing, a 23-27 inch rib length is the practical middle band: it covers standard folded-stick and auto-open styles without creating a bulky profile that hurts distribution. On the factory floor, I would treat 23 inches as the minimum for a real personal umbrella and 27 inches as the point where you can still ship a compact item but get noticeably better shoulder and backpack coverage.

For retail and event programs, 25-27 inch rib length is where the numbers start to matter more than the label. A 25 inch frame with 8K or 10K fiberglass ribs often gives a 42-48 inch open diameter, which is a better fit for commuter and branded gift use than a tiny travel model. If the buyer asks for umbrella coverage specs with a stronger hand-feel, look at 27 inch manual or auto-open-close builds using pongee 190T or 210T, because the canopy can be cut with a fuller arc without making the shaft unwieldy. This is also the range where open diameter and canopy size should be checked together; a loose spec on one side usually causes a mismatch in sample approval.

Once you move into golf or patio-style orders, 30 inch-plus ribs make more sense because the use case changes from personal carry to shared coverage. A 30-34 inch rib length can produce a 58-68 inch open diameter for golf umbrellas, and double-canopy vented windproof builds are common here because a large panel catches wind hard. For patio or outdoor dining, 36 inch and up is normal, especially if the buyer wants a center-post umbrella with fiberglass or reinforced steel ribs and a stronger runner system. If the brief calls for real coverage over two people, do not try to force a 23 inch spec; it saves little money and usually disappoints on reach. In that range, umbrella coverage specs should be set by the table, seating, or crowd layout first, then the frame chosen to match.

Choose frame size around wind and weight

With umbrella coverage specs, the first thing I look at is not the printed canopy diameter but the load path from the runner to the tips. As canopy size goes up, the leverage on each rib and joint rises fast, so a frame that feels fine at 21" can start flexing badly at 23" or 27" if the hardware is too light. Fiberglass ribs handle repeated bending better than plain steel because they spring back instead of taking a permanent set, which is why they are the default for windproof builds. Steel still has a place on cheaper promo umbrella sizing, but once the open diameter gets larger, the weight penalty and corrosion risk start to matter. On the factory floor, I treat rib length and open diameter as linked dimensions, not separate marketing numbers, because a 60-inch open span can behave very differently depending on whether the frame is 8K, 10K, or 16K.

The rib count changes how the load is distributed across the canopy. An 8K frame has fewer support points, so each rib carries more force when a gust hits, which is why the joints and stretcher rivets need to be robust if the umbrella is meant to survive real wind instead of a showroom demo. A 16K construction gives finer support and a smoother canopy profile, but it only works if the ferrules, tips, and shaft-to-runner interfaces are reinforced; otherwise the extra ribs just add weight without improving durability. For larger open diameter targets, I usually specify fiberglass main ribs with reinforced steel or fiberglass-composite tips, because that combination keeps the umbrella lighter while reducing breakage at the hinge points. That is the practical way to size umbrella coverage specs for a product that needs to open cleanly and stay aligned after repeated cycling.

The mistake I see most often is choosing canopy size from the fabric first and the frame second. Rib length sets the actual span, but the open diameter is what the user feels in the rain, so a 30" rib length with a loose profile can cover less effectively than a tighter 27" frame with a better arc. Windproof designs need stronger joints because the load concentrates at the knuckles when the canopy snaps back under gust pressure; that is where failures start, not in the middle of the rib. ZheBrella’s standard practice is to match rib length, shaft wall thickness, and joint style to the intended use case, then verify the build against AQL 2.5 before release. For FOB or DDP programs, I would rather slightly overspec the frame than chase the lowest weight, because a few extra grams is cheaper than a return rate driven by bent ribs and broken stretchers.

Specify fabric and coating with the size

Pongee weight matters more than most buyers admit because it changes how the umbrella reads in hand and on shelf. In umbrella coverage specs, 190T pongee is the standard workhorse: it is tighter than basic polyester, packs a little smaller, and gives decent opacity without turning the canopy stiff. 210T pongee is the better call when you want a cleaner drape, less light bleed, and a slightly fuller hand feel, especially on a 23-inch or 27-inch frame where the fabric has more span to hold its shape. For promo umbrella sizing, that fabric choice affects both perceived quality and carton volume, because a denser cloth and tighter fold geometry can add a few millimeters to the packed profile.

Coating should be matched to the job, not specified by habit. If the umbrella is only for rain, a standard water-repellent finish is usually enough, but if it must handle sun as well as rain, require UPF 50+ and confirm the coating system, not just the fabric label. A UV-rated canopy can be built on 190T or 210T pongee, but the denser 210T base usually gives better opacity and less pinhole transmission. DWR helps water bead and shake off faster, while a Teflon-style finish mainly improves runoff and stain resistance; neither should be confused with true UV protection. If the buyer expects beach, golf, or outdoor event use, ask for test data, because umbrella coverage specs without coating data are incomplete.

Open diameter and rib length should be specified together, not as separate marketing numbers. A 21-inch frame usually lands around a 38 to 40 inch open diameter, 23-inch around 41 to 43 inches, 27-inch around 48 to 50 inches, and 30-inch golf styles can push past 52 inches depending on arc design. That is why the same canopy size can feel very different in the field: a shallow dome covers less shoulder room than a deeper vented build on the same rib length. For procurement, tie the rib length to the actual open diameter, then confirm the fabric and coating so the umbrella coverage specs match the intended use rather than the catalog photo.

Write the order spec so vendors quote the same product

If you want vendors to quote the same product, put every coverage dimension on one sheet and do not let anyone substitute terms. For umbrella coverage specs, I require open diameter, arc, rib length, shaft diameter, handle length, and a tolerance band for each critical dimension. Open diameter tells the buyer the actual rain shield, arc is the fabric sweep, and rib length is what the frame shop uses to cut and assemble. Those three numbers are not interchangeable. For promo umbrella sizing, a 21-inch frame can still be quoted badly if one supplier measures arc and another measures open diameter, so the drawing should state the measurement method and the reference point on the ferrule, runner, and tip. I also want shaft diameter in millimeters, handle length from top of handle to bottom end, and a tolerance like +/- 5 mm on ribs and +/- 10 mm on open diameter so nobody argues after samples are approved.

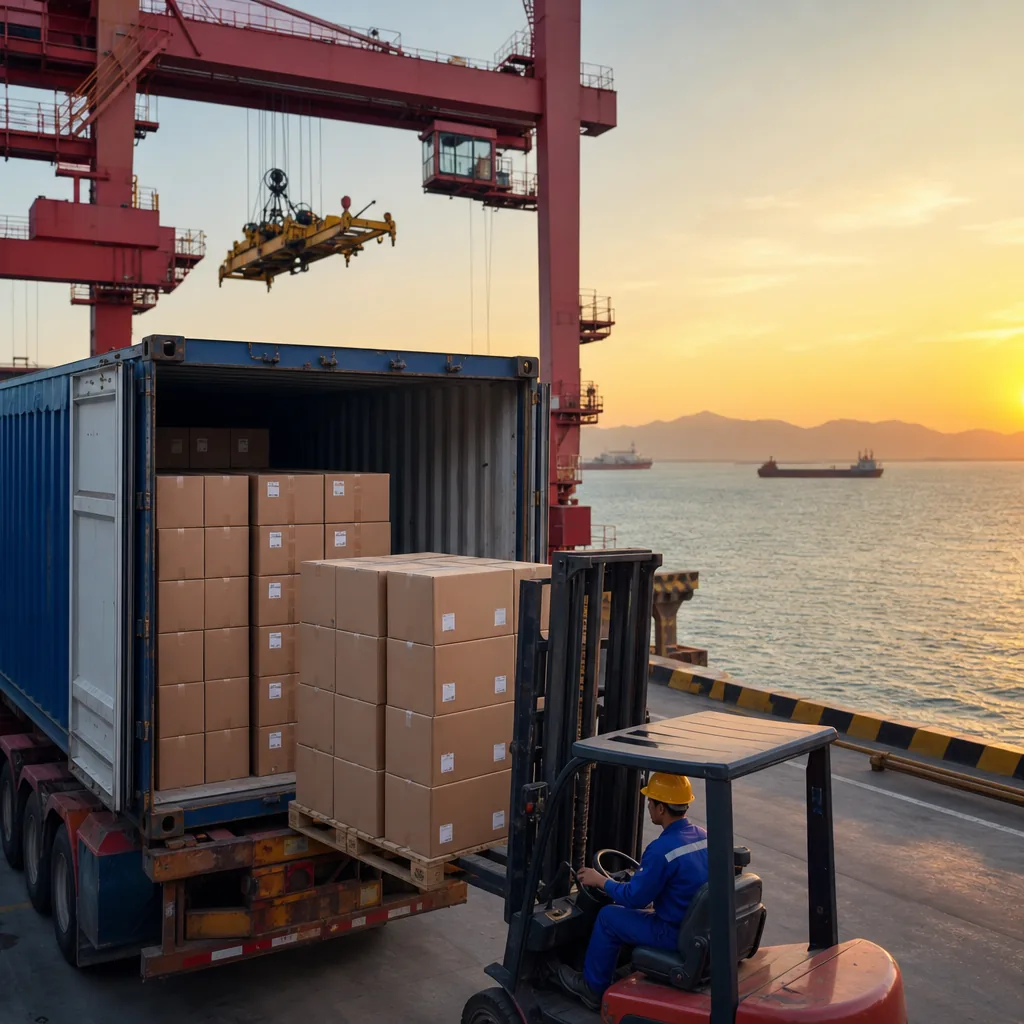

Coverage changes everything downstream: carton size, inner pack count, freight density, and even whether FOB or DDP is the sensible price basis. A larger canopy size usually means a longer shaft, more fiberglass in the ribs, and a bigger packed carton, which pushes both MOQ and landed cost up even when the panel fabric is the same 190T pongee. If you quote 23-inch and 27-inch models together without separating packing size, the numbers are meaningless because one pallet can hold far fewer units once the open diameter grows. Our standard practice is to quote the exact umbrella coverage specs on a single spec sheet, then tie that to carton dimensions, gross weight, and the Incoterm, because FOB only covers factory loading while DDP has to absorb the real air or ocean volume. If the buyer skips this, the price spread is usually a measurement problem, not a factory problem.
